Advanced repository - step 2

Building the professional repository

Now that we have been well prepared, let's go to a real life example of building our repository.
We will now focus on a bigger example that uses different public repositories to retrieve the information.
In this tutorial we will use, in order of preference :

  • our home made repository
  • ivyrep official
  • ibiblio maven2

the resolvers used

<resolvers>
    <filesystem name="local-repository">
        <ivy pattern="${dest.repo.dir}/[organisation]/[module]/ivys/ivy-[revision].xml"/>
        <artifact pattern="${dest.repo.dir}/[organisation]/[module]/[type]s/[artifact]-[revision].[type]"/>
    </filesystem>

    <chain name="libraries" returnFirst="false">
        <resolver ref="local-repository" />
        <ivyrep name="official-ivy-rep"/>
        <resolver ref="ibiblio-maven2" />
    </chain>
</resolvers>

We start the chain with our home made repository because as we can expect, we consider this repository as good ivy file repository (that's why we create it). So all files that are in this repository are considered as valid and correct and usuable.
The building process is then an iterative process.
After each import of new projects into our repository, we check and modify the generated ivy files (or you do not as you want). The generated ivy files are those that were translated from a POM or those for which an artifact has been found without a module descriptor (ivy or pom).

Let's go

What about to test our configuration with a big project : hibernate 3.0
Just run : ant advanced

Here we go !!!!!!!!

Z:\build-a-ivy-repository>ant advanced
Buildfile: build.xml

init-advanced:
:: Ivy non official version :: http://ivy.jayasoft.org/ ::
:: configuring :: file = Z:\build-a-ivy-repository\config\ivy-conf-advanced.xml

advanced:
:: installing [ hibernate | hibernate | 3.0 ] ::
:: resolving dependencies ::
        found [ hibernate | hibernate | 3.0 ] in ibiblio-maven2
        found [ apache | commons-logging | 1.0.4 ] in official-ivy-rep
        found [ apache | ant | 1.6.3 ] in ibiblio-maven2
        found [ c3p0 | c3p0 | 0.8.4.5 ] in official-ivy-rep
        found [ proxool | proxool | 0.8.3 ] in official-ivy-rep
        found [ ehcache | ehcache | 1.1 ] in official-ivy-rep
        found [ apache | xerces | 2.5.0 ] in official-ivy-rep
        found [ apache | commons-collections | 2.1.1 ] in official-ivy-rep
        found [ opensymphony | oscache | 2.1 ] in ibiblio-maven2
        found [ swarmcache | swarmcache | 1.0RC2 ] in official-ivy-rep
        found [ apache | commons-collections | 2.1 ] in official-ivy-rep
        found [ apache | commons-logging | 1.0.2 ] in official-ivy-rep
        found [ jgroups | jgroups | 2.2 ] in official-ivy-rep
        found [ jboss | jboss-cache | 1.2.2 ] in ibiblio-maven2
        found [ jboss | jboss-system | 4.0.2 ] in ibiblio-maven2
        found [ jboss | jboss-common | 4.0.2 ] in ibiblio-maven2
        found [ jboss | jboss-minimal | 4.0.2 ] in ibiblio-maven2
        found [ jboss | jboss-j2se | 200504122039 ] in ibiblio-maven2
        found [ concurrent | concurrent | 1.3.4 ] in ibiblio-maven2
        found [ jgroups | jgroups-all | 2.2.7 ] in ibiblio-maven2
        found [ cglib | cglib | 2.0.2 ] in official-ivy-rep
        found [ objectweb | asm | 1.3.4 ] in official-ivy-rep
        found [ asm | asm | 1.4.3 ] in ibiblio-maven2
        found [ javax.security | jacc | 1.0 ] in ibiblio-maven2
        found [ dom4j | dom4j | 1.6 ] in ibiblio-maven2
        found [ javax.transaction | jta | 1.0.1B ] in ibiblio-maven2
        found [ hibernate | antlr | 2.7.5H3 ] in ibiblio-maven2
        found [ odmg | odmg | 3.0 ] in official-ivy-rep
:: downloading artifacts to cache ::
downloading http://www.ibiblio.org/maven2/hibernate/hibernate/3.0/hibernate-3.0.jar ...
..................................................
.. (1565kB)
        [SUCCESSFUL ] [ hibernate | hibernate | 3.0 ]/hibernate.jar[jar] (8500ms)
downloading http://www.ibiblio.org/maven2/hibernate/antlr/2.7.5H3/antlr-2.7.5H3.jar ...

           SOME MINUTES LATER !!!!!!!!!!

downloading http://www.ibiblio.org/maven/commons-logging/jars/commons-logging-1.0.4.... ...
........ (37kB)
        [SUCCESSFUL ] [ apache | commons-logging | 1.0.4 ]/commons-logging.jar[jar] (1110ms)
:: installing in local-repository ::
        published hibernate to Z:\build-a-ivy-repository/ivy-local-repository/hibernate/hibernate/jars/hibernate-3.0.jar
        published ivy to Z:\build-a-ivy-repository/ivy-local-repository/hibernate/hibernate/ivys/ivy-3.0.xml
        published antlr to Z:\build-a-ivy-repository/ivy-local-repository/hibernate/antlr/jars/antlr-2.7.5H3.jar
        published ivy to Z:\build-a-ivy-repository/ivy-local-repository/hibernate/antlr/ivys/ivy-2.7.5H3.xml
        published dom4j to Z:\build-a-ivy-repository/ivy-local-repository/dom4j/dom4j/jars/dom4j-1.6.jar
        published ivy to Z:\build-a-ivy-repository/ivy-local-repository/dom4j/dom4j/ivys/ivy-1.6.xml
missing artifact [ javax.security | jacc | 1.0 ]/jacc.jar[jar]: Z:\build-a-ivy-repository\cache\javax.security\jacc\jars\jacc-1.0.jar file does not exist
        published ivy to Z:\build-a-ivy-repository/ivy-local-repository/javax.security/jacc/ivys/ivy-1.0.xml
        published asm to Z:\build-a-ivy-repository/ivy-local-repository/asm/asm/jars/asm-1.4.3.jar
        published ivy to Z:\build-a-ivy-repository/ivy-local-repository/asm/asm/ivys/ivy-1.4.3.xml
        published cglib-full to Z:\build-a-ivy-repository/ivy-local-repository/cglib/cglib/jars/cglib-full-2.0.2.jar
        published cglib to Z:\build-a-ivy-repository/ivy-local-repository/cglib/cglib/jars/cglib-2.0.2.jar
        published ivy to Z:\build-a-ivy-repository/ivy-local-repository/cglib/cglib/ivys/ivy-2.0.2.xml
        published asm to Z:\build-a-ivy-repository/ivy-local-repository/objectweb/asm/jars/asm-1.3.4.jar
        published asm-util to Z:\build-a-ivy-repository/ivy-local-repository/objectweb/asm/jars/asm-util-1.3.4.jar
        published ivy to Z:\build-a-ivy-repository/ivy-local-repository/objectweb/asm/ivys/ivy-1.3.4.xml
        published jboss-cache to Z:\build-a-ivy-repository/ivy-local-repository/jboss/jboss-cache/jars/jboss-cache-1.2.2.jar
        published ivy to Z:\build-a-ivy-repository/ivy-local-repository/jboss/jboss-cache/ivys/ivy-1.2.2.xml
        published jgroups-all to Z:\build-a-ivy-repository/ivy-local-repository/jgroups/jgroups-all/jars/jgroups-all-2.2.7.jar
        published ivy to Z:\build-a-ivy-repository/ivy-local-repository/jgroups/jgroups-all/ivys/ivy-2.2.7.xml
        published concurrent to Z:\build-a-ivy-repository/ivy-local-repository/concurrent/concurrent/jars/concurrent-1.3.4.jar
        published ivy to Z:\build-a-ivy-repository/ivy-local-repository/concurrent/concurrent/ivys/ivy-1.3.4.xml
        published jboss-j2se to Z:\build-a-ivy-repository/ivy-local-repository/jboss/jboss-j2se/jars/jboss-j2se-200504122039.jar
        published ivy to Z:\build-a-ivy-repository/ivy-local-repository/jboss/jboss-j2se/ivys/ivy-200504122039.xml
        published jboss-minimal to Z:\build-a-ivy-repository/ivy-local-repository/jboss/jboss-minimal/jars/jboss-minimal-4.0.2.jar
        published ivy to Z:\build-a-ivy-repository/ivy-local-repository/jboss/jboss-minimal/ivys/ivy-4.0.2.xml
        published jboss-system to Z:\build-a-ivy-repository/ivy-local-repository/jboss/jboss-system/jars/jboss-system-4.0.2.jar
        published ivy to Z:\build-a-ivy-repository/ivy-local-repository/jboss/jboss-system/ivys/ivy-4.0.2.xml
        published swarmcache to Z:\build-a-ivy-repository/ivy-local-repository/swarmcache/swarmcache/jars/swarmcache-1.0RC2.jar
        published ivy to Z:\build-a-ivy-repository/ivy-local-repository/swarmcache/swarmcache/ivys/ivy-1.0RC2.xml
missing artifact [ jgroups | jgroups | 2.2 ]/jgroups.jar[jar]: Z:\build-a-ivy-repository\cache\jgroups\jgroups\jars\jgroups-2.2.jar file does not exist
        published ivy to Z:\build-a-ivy-repository/ivy-local-repository/jgroups/jgroups/ivys/ivy-2.2.xml
        published commons-logging to Z:\build-a-ivy-repository/ivy-local-repository/apache/commons-logging/jars/commons-logging-1.0.2.jar
        published ivy to Z:\build-a-ivy-repository/ivy-local-repository/apache/commons-logging/ivys/ivy-1.0.2.xml
        published oscache to Z:\build-a-ivy-repository/ivy-local-repository/opensymphony/oscache/jars/oscache-2.1.jar
        published ivy to Z:\build-a-ivy-repository/ivy-local-repository/opensymphony/oscache/ivys/ivy-2.1.xml
        published c3p0 to Z:\build-a-ivy-repository/ivy-local-repository/c3p0/c3p0/jars/c3p0-0.8.4.5.jar
        published ivy to Z:\build-a-ivy-repository/ivy-local-repository/c3p0/c3p0/ivys/ivy-0.8.4.5.xml
        published odmg to Z:\build-a-ivy-repository/ivy-local-repository/odmg/odmg/jars/odmg-3.0.jar
        published ivy to Z:\build-a-ivy-repository/ivy-local-repository/odmg/odmg/ivys/ivy-3.0.xml
        published proxool to Z:\build-a-ivy-repository/ivy-local-repository/proxool/proxool/jars/proxool-0.8.3.jar
        published ivy to Z:\build-a-ivy-repository/ivy-local-repository/proxool/proxool/ivys/ivy-0.8.3.xml
missing artifact [ javax.transaction | jta | 1.0.1B ]/jta.jar[jar]: Z:\build-a-ivy-repository\cache\javax.transaction\jta\jars\jta-1.0.1B.jar file does not exist
        published ivy to Z:\build-a-ivy-repository/ivy-local-repository/javax.transaction/jta/ivys/ivy-1.0.1B.xml
        published jboss-common to Z:\build-a-ivy-repository/ivy-local-repository/jboss/jboss-common/jars/jboss-common-4.0.2.jar
        published ivy to Z:\build-a-ivy-repository/ivy-local-repository/jboss/jboss-common/ivys/ivy-4.0.2.xml
        published ant to Z:\build-a-ivy-repository/ivy-local-repository/apache/ant/jars/ant-1.6.3.jar
        published ivy to Z:\build-a-ivy-repository/ivy-local-repository/apache/ant/ivys/ivy-1.6.3.xml
        published commons-collections to Z:\build-a-ivy-repository/ivy-local-repository/apache/commons-collections/jars/commons-collections-2.1.jar
        published ivy to Z:\build-a-ivy-repository/ivy-local-repository/apache/commons-collections/ivys/ivy-2.1.xml
        published ehcache to Z:\build-a-ivy-repository/ivy-local-repository/ehcache/ehcache/jars/ehcache-1.1.jar
        published ivy to Z:\build-a-ivy-repository/ivy-local-repository/ehcache/ehcache/ivys/ivy-1.1.xml
        published commons-collections to Z:\build-a-ivy-repository/ivy-local-repository/apache/commons-collections/jars/commons-collections-2.1.1.jar
        published ivy to Z:\build-a-ivy-repository/ivy-local-repository/apache/commons-collections/ivys/ivy-2.1.1.xml
        published xercesImpl to Z:\build-a-ivy-repository/ivy-local-repository/apache/xerces/jars/xercesImpl-2.5.0.jar
        published ivy to Z:\build-a-ivy-repository/ivy-local-repository/apache/xerces/ivys/ivy-2.5.0.xml
        published commons-logging to Z:\build-a-ivy-repository/ivy-local-repository/apache/commons-logging/jars/commons-logging-1.0.4.jar
        published ivy to Z:\build-a-ivy-repository/ivy-local-repository/apache/commons-logging/ivys/ivy-1.0.4.xml
:: install resolution report ::
        ---------------------------------------------------------------------
        |                  |            modules            ||   artifacts   |
        |       conf       | number| search|dwnlded|evicted|| number|dwnlded|
        ---------------------------------------------------------------------
        |      default     |   28  |   28  |   28  |   0   ||   30  |   27  |
        ---------------------------------------------------------------------

BUILD SUCCESSFUL
Total time: 2 minutes 10 seconds
Z:\build-a-ivy-repository>

Analysing the results

OK, it seems that we have a good start point for our repository.
As you can see in the resolving part of the process :

:: resolving dependencies ::
        found [ hibernate | hibernate | 3.0 ] in ibiblio-maven2
        found [ apache | commons-logging | 1.0.4 ] in official-ivy-rep
        ...
        found [ odmg | odmg | 3.0 ] in official-ivy-rep

some ivy files were retrieved from the ivyrep the official ivy repository. That significates that for these modules, you have in your home made repository good ivy files (with meaningfull configurations, ...).

And now

Now what you need to do is to download missing artifacts, those not on ibiblio (from sun, ...) and correct the generated ivy files.
It is important to make a review of the generated ivy files because you could then benefit from all the power of ivy by defining for those projects good configurations and some other good things.

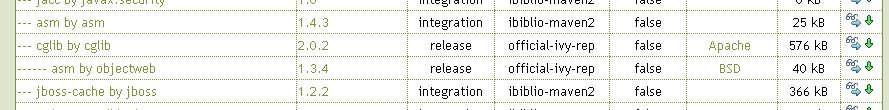

To ease finding generated files, just take a look at the generated resolve report in your cache. You will find there the projects for which a default ivy file was generated


and you can see the resolvers that have resolved the modules. In our example, you will update the files whose project were resolved by the ibiblio-maven2 resolver.
